Semiconductor Pressure Sensor
SM Series

Features

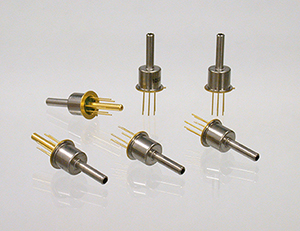

The SM series are high precision and high durability metal
can package type (TO-5 CAN equivalent package).

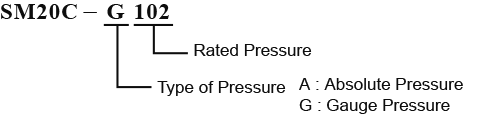

Model

Semiconductor Pressure Sensor SM Series
Semiconductor Pressure Sensor SM Series

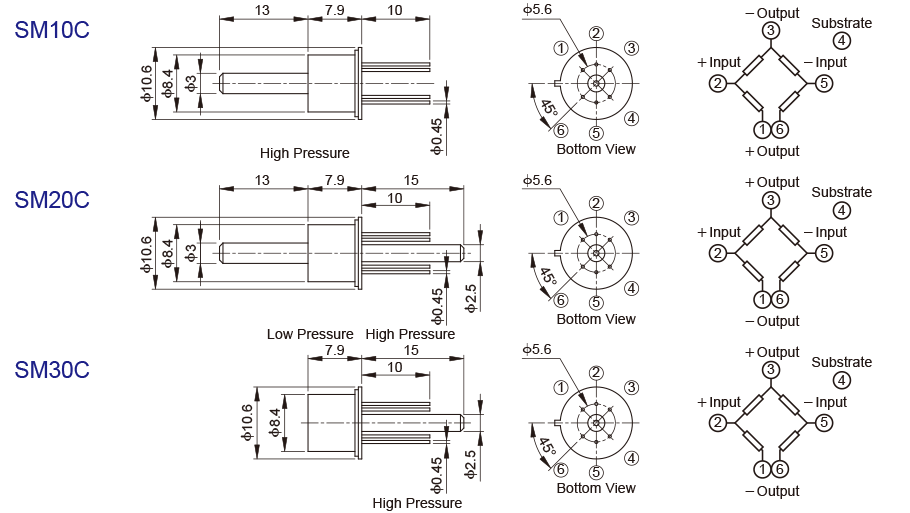

External Dimensions and Terminal Arrangement

Unit:mm

Semiconductor Pressure Sensor SM Series

Specifications

Model No. SM10C SM20C SM30C-A(G)
101 201 501 102 202 502 103
Rated Pressure [ kPa ] ±10 ±20 ±50 ±100 -100~200 -100~500 -100~1000
Pressure Type Absolute, Gauge
Temperature Range [ °C ] -20~100
Pressure Medium Non-Corrosive Gases
Excitation Current [ mA ] 1.5 1.0
Maximum Overload Pressure Rated Pressure X 3
Output Span Voltage [ mV ] 60~140
Bridge Resistance [ kΩ ] 5±1
Offset Voltage [ mV ] 0±25 0±20
Offset Voltage Temperature Characteristics*1 [ %FS /°C ] ±0.5 ±0.1
Span Voltage Temperature Characteristics*1 [ %FS/°C ] ±0.2 ±0.05
Linearity [ %FS ] ±1.5 ±0.3

NOTE *1 The temperature range is 0 to 60℃. If there is no specification, the temperature range is 25±5℃.
These specifications are examples. Please contact us for other specifications.

Specifications of products are subject to change without notice.
